Statistical analyses: t tests, ANOVA, regression and more

How to run a statistical test in Dioptra: select the data, press Analyze (Ctrl-Shift-A), choose the test and its options, and read the results sheet, which shows the assumption checks first and the effect size with its confidence interval.

An analysis in Dioptra is an object in your project, like a table or a graph. It holds a specification (which table, which test, which options) and a results sheet computed from it. Change the data and the sheet recomputes. Change an option and the sheet recomputes. Delete the analysis and the history still records that it existed.

This page explains the flow, the parts of a results sheet, and the defaults. The analysis reference documents each analysis: when to use it, what it assumes, its options and outputs, its reference, and a worked example.

The flow

1. Select data and press Analyze (Ctrl-Shift-A, or the Analyze… button above the grid). The list holds all twenty analyses. Those that fit the table kind are active; the others are shown greyed with the reason (“needs a contingency table”, “needs at least three data sets”). You see what exists even when it does not apply.

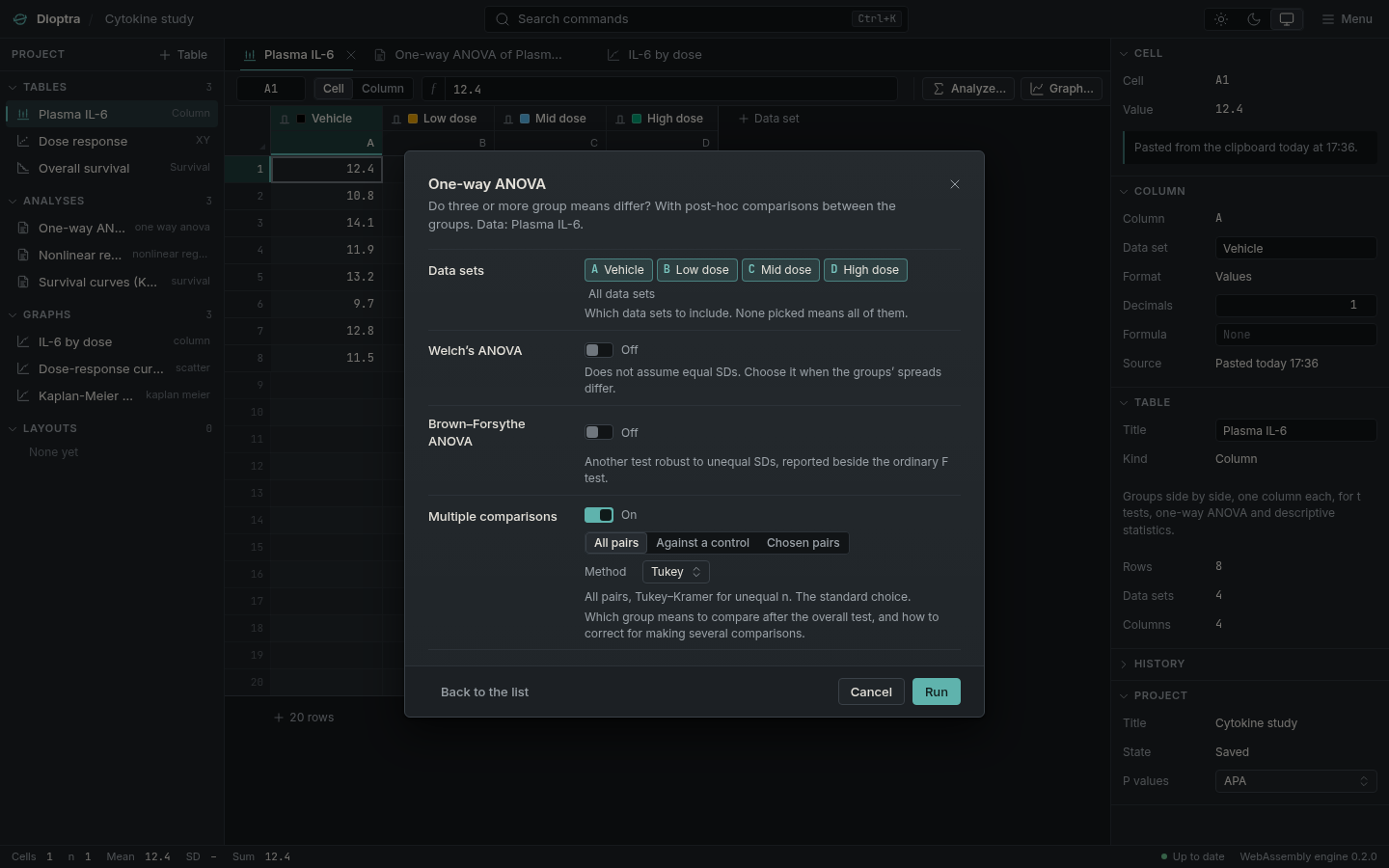

2. Choose options. One compact panel with the few choices that matter, each with one line saying what it means. The defaults are the ones a careful statistician would choose without knowing more about your experiment.
3. Run. The results sheet opens beside the table.
4. Make a graph from the sheet with one click. Brackets for comparisons and fitted curves come from the analysis and stay linked to it.
5. Change anything. The sheet and the graph mark themselves stale and recompute when you look at them.

What a results sheet contains

A results sheet is structured, not a block of text. From top to bottom:

Assumption checks. What the test rests on, what was checked, and what the check means for this result. Collapsed to one line when everything passed; open when something did not.

Summary sentences. The result in words, in the style of a careful methods section:

Welch’s t test: the means differ by 3.2 units (95% CI 1.1 to 5.3), t(17.4) = 3.21, p = .005.

The estimate and its confidence interval come first. The p value comes last, as one piece of evidence among several.

A methods sentence you can paste into a paper: which test, which variant, two-sided or not, which correction for multiple comparisons, how many values were used, and the Dioptra version.

Tables. Every number at full precision, displayed to a sensible number of digits. Copy a single number, a table, or the whole sheet as tab-separated text or Markdown (Copy sheet).

Effect sizes with confidence intervals. Mean differences, Cohen’s d and Hedges’ g, eta squared, odds ratios and relative risks, correlation coefficients, hazard ratios, AUC. In the base product, always shown. An effect size says how big the difference is; a p value only says whether the data are surprising if there were none.

A checklist headed Before you report this: the things the test cannot check for you. Are the values independent? Was the pairing decided before the experiment? Is the experimental unit the row, or something larger?

Assumption checks

Every parametric test assumes things about the data: that values are independent, that they come from a roughly Gaussian distribution, that the groups have similar spreads. Independence can only be judged from the design, so it goes in the checklist. The rest can be checked, and Dioptra checks it, at α = 0.05 for every check:

A failed check does not stop the analysis. It says what the failure means here and names the alternative: Welch’s ANOVA when variances differ, a rank-based test when the distribution is far from Gaussian, more data when n is too small.

Two warnings about normality tests, which the sheet repeats where they matter. With small samples they have little power: a pass at n = 4 tells you almost nothing. With large samples they detect departures too small to matter, and the t test is robust to those. Look at the data as well. Use the checks as a prompt, not as an automatic switch; choosing the test after seeing which one gives the smaller p value is the p-hacking the analysis log is there to make visible.

The defaults, and why

Welch’s t test, not Student’s. Student’s t test assumes the two groups have equal variances. When they do, Welch’s test gives almost the same answer. When they do not, and especially when the smaller group has the larger variance, Student’s test can be badly wrong. Welch costs nothing when the assumption holds and protects you when it fails, so it is the default. Student’s test is one click away for anyone who needs it.

Two-sided. A one-sided test halves the p value in the direction you predicted and cannot detect an effect in the other. It is legitimate only when the direction was fixed before the data were seen and an effect the other way would be treated as no effect. That is rare, so two-sided is the default, and choosing one-sided adds a sentence to the methods line saying so.

Tukey–Kramer for all pairs. After an ANOVA the default compares every pair of groups with Tukey–Kramer, which handles unequal group sizes. For each group against a control, choose Dunnett; for a few pairs chosen in advance, Holm or Šidák. Each of these controls the chance of any false positive across the family of comparisons, with the most power available for that question. Plain Bonferroni is available but needlessly conservative; Holm is uniformly better. Benjamini–Hochberg controls the false discovery rate instead, for screens with many comparisons.

Type III sums of squares for two-way ANOVA, with sum-to-zero coding, so that unbalanced designs give the answer most textbooks and Prism give. (A frequent error is type III with dummy coding; Dioptra’s tests check that it does not make it.)

Exact tests when affordable. Mann–Whitney and Wilcoxon p values are exact when there are no ties and the samples are small enough to enumerate; Fisher’s test is exact for tables larger than 2 × 2 too; Spearman’s p is exact for n ≤ 9. The sheet says which method produced the p value.

P-value styles

A p value can be written several ways. The project’s style is set once (inspector, Project, P values) and applies everywhere: results sheets, summary sentences, and the labels on graph brackets. Changing it changes them all, and never changes the number underneath.

The GP style uses GraphPad’s asterisks: * < .05, ** < .01, *** < .001, **** < .0001, decided on the stored value, not the rounded one. It is available because some journals and labs require it. It is not the default because asterisks turn a continuous measure of evidence into a grade, and the word “significant” invites the reader to stop at the grade.

Reproducibility

Each analysis is saved in the project file as its specification, so reopening the file recomputes every result from the data. Each run, option change and deletion is a command in the history (history.jsonl inside the file), so the record of what was tried is kept with what was reported.
